Product introduction and principle

The internal structure of the automatic brush filter is composed of stainless steel filter screen, stainless steel wire brush and transmission parts. The transmission motor and electric valve automatically complete the cleaning and sewage discharge. Sewage dual function. When the water flows through the filter, the impurities in the water are intercepted by the filter screen, the impurities accumulated on the surface of the filter screen increase to make the pressure difference reach a certain value, the differential pressure switch sends a signal, the transmission motor starts, the drain valve is opened, and the impurities deposited in the filter screen It is brushed by the rotating brush and discharged from the sewage outlet. The whole process of brushing and sewage does not require personnel operation and no downtime. At the same time, the equipment is also equipped with regular cleaning and manual cleaning and sewage functions to ensure the safety and reliability of the water in any situation.

The automatic brush filter is suitable for circulating or non-circulating cooling water systems, heat exchange systems, central air conditioning systems, central heating systems, etc.

YLD YLD

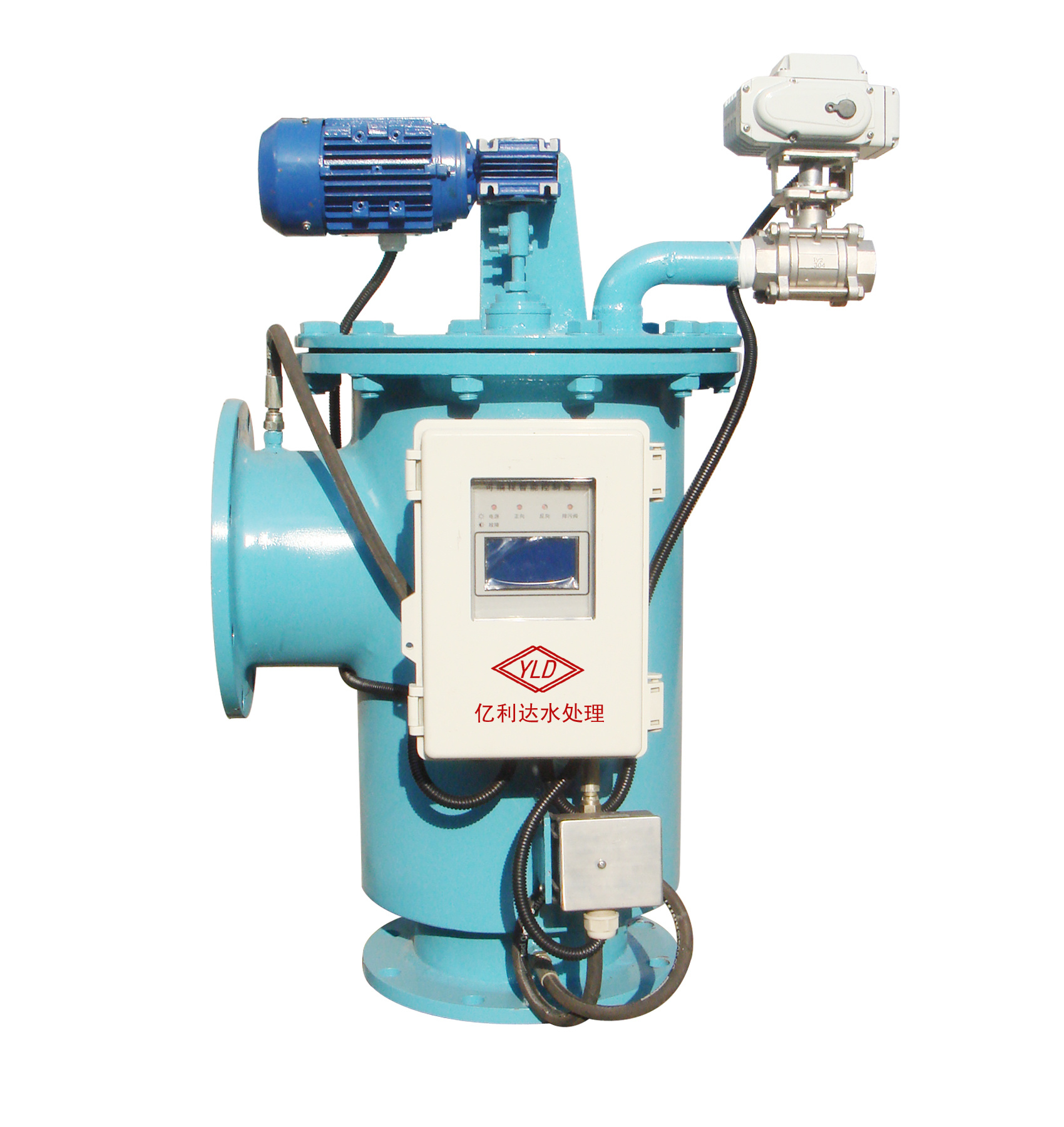

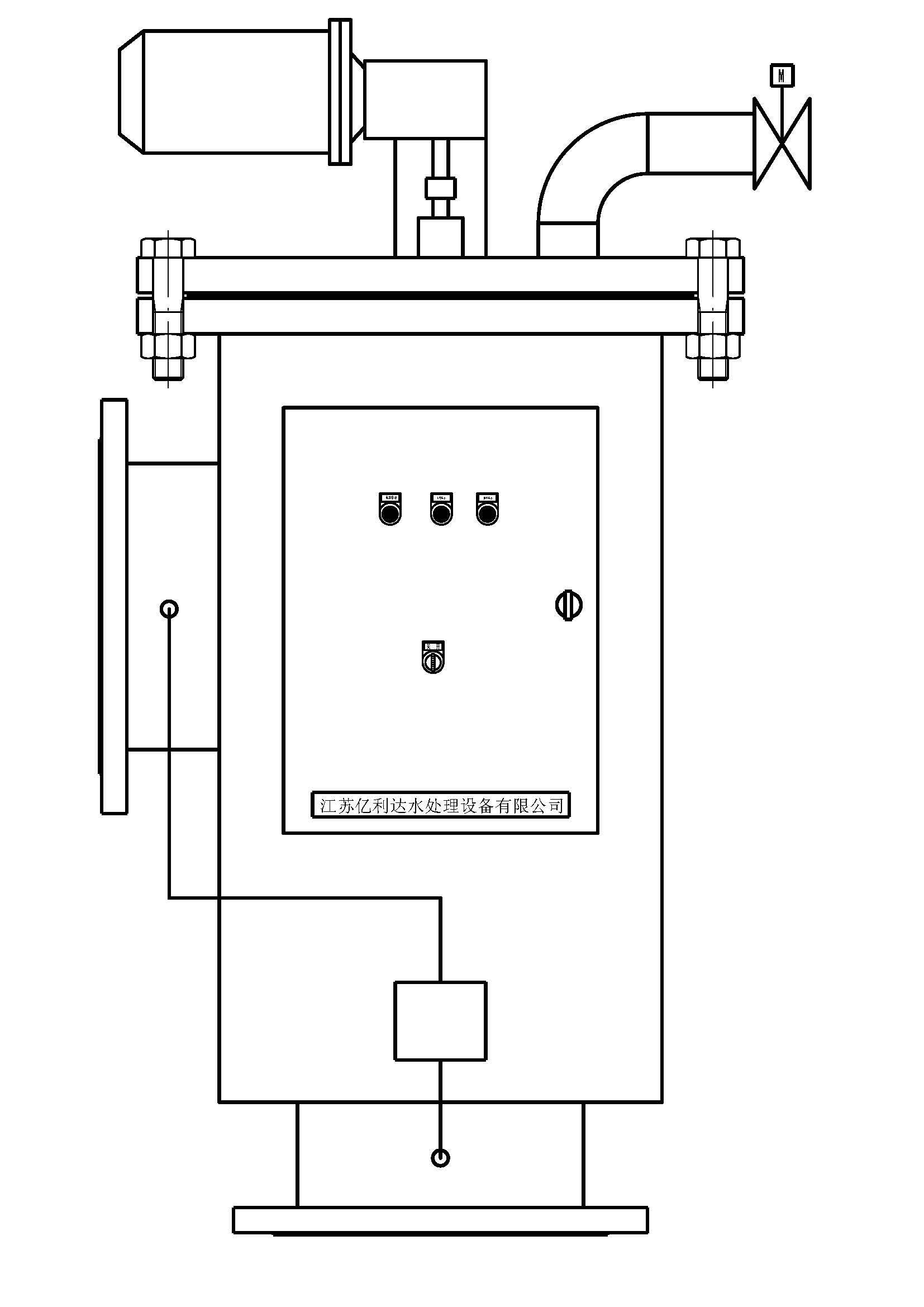

Y-type automatic brush filter selection reference table

model	flow （T/h）	Exit and entry diameter		Sewage diameter （mm）	L （mm）	D （mm）	H （mm）	motor （Kw/r/min）	weight （Kg）
model	flow （T/h）	mm	in	Sewage diameter （mm）	L （mm）	D （mm）	H （mm）	motor （Kw/r/min）	weight （Kg）
YL-2Y	19	50	2	25	550	159	300	0.18/1400	80
YL-2.5Y	28	65	2.5	25	550	159	300	0.18/1400	100
YL-3Y	50	80	3	25	600	219	300	0.18/1400	130
YL-4Y	80	100	4	25	600	219	300	0.18/1400	170
YL-5Y	125	125	5	25	600	219	350	0.18/1400	200
YL-6Y	180	150	6	32	650	273	350	0.18/1400	270
YL-8Y	320	200	8	40	850	325	525	0.18/1400	350
YL-10Y	490	250	10	50	900	377	650	0.18/1400	390
YL-12Y	710	300	12	50	1000	425	680	0.37/1400	480
YL-14Y	970	350	14	65	1100	478	740	0.37/1400	550

以上數據僅供參考，以每次出貨産(chǎn)品數據為(wèi)準。

YLD YLD

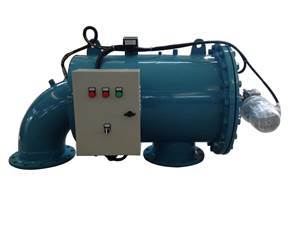

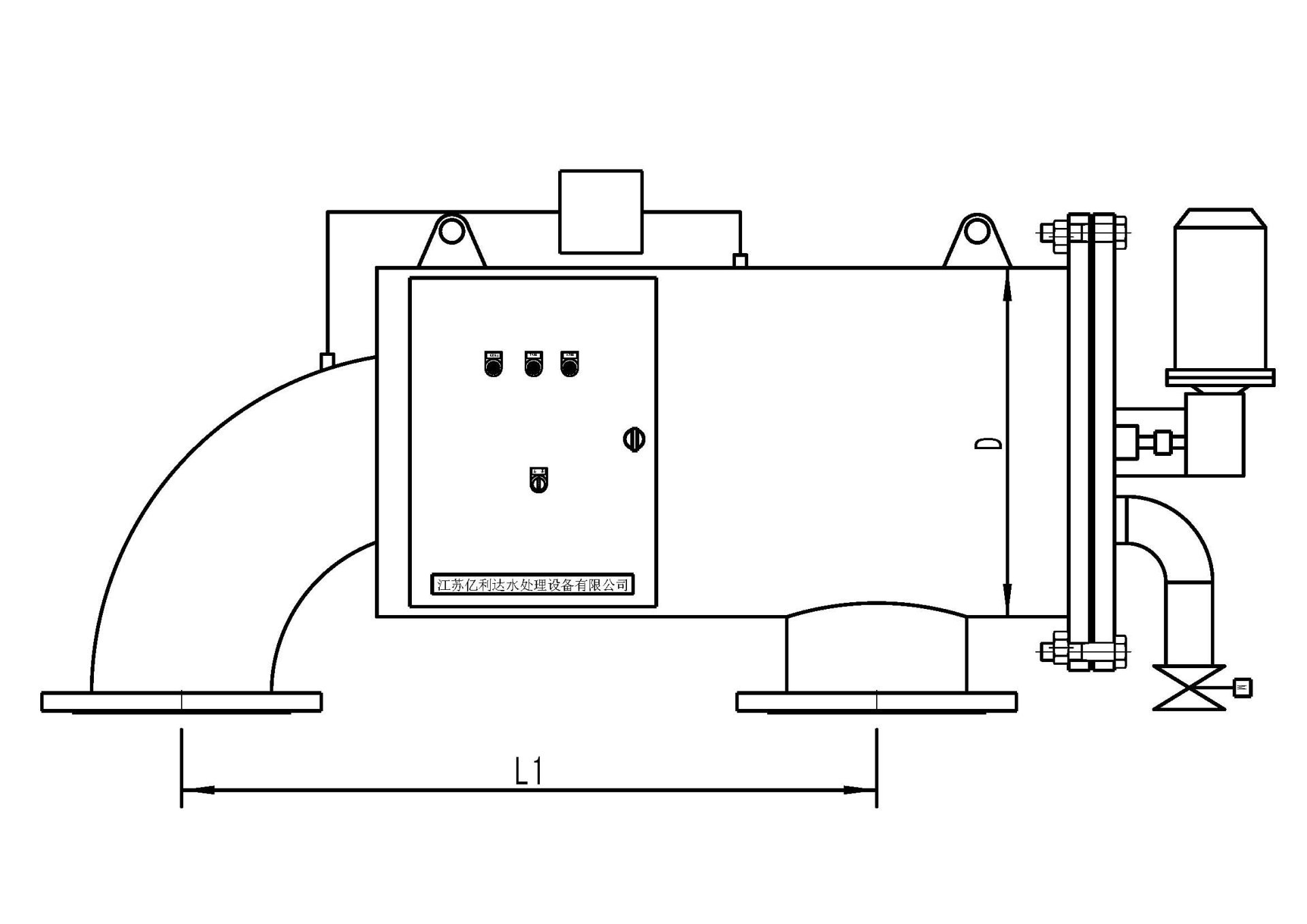

F-type automatic brush filter selection reference table

model	flow （T/h）	Exit and entry diameter		Sewage diameter （mm）	D （mm）	L （mm）	L1 （mm）	weight （Kg）
model	flow （T/h）	mm	in	Sewage diameter （mm）	D （mm）	L （mm）	L1 （mm）	weight （Kg）
YL-2F	19	50	2	25	159	750	260	80
YL-3F	50	80	3	25	219	850	300	130
YL-4F	80	100	4	25	273	900	340	170
YL-5F	125	125	5	25	273	920	350	200
YL-6F	180	150	6	32	273	1150	460	270
YL-8F	320	200	8	40	325	1300	520	350

The above data is for reference only, and the data of each product shipped shall prevail.

YLD YLD

Angle-pass automatic brush filter selection reference table

model	flow (T/h)	Exit and entry diameter		Sewage diameter (mm)	H (mm)	D (mm)	motor(KW/r/min)	weight (Kg)
model	flow (T/h)	mm	in	Sewage diameter (mm)	H (mm)	D (mm)	motor(KW/r/min)	weight (Kg)
YL-2J	19	50	2	25	840	159	0.18/1400	80
YL-2.5J	28	65	2.5	25	840	159	0.18/1400	100
YL-3J	50	80	3	25	860	219	0.18/1400	130
YL-4J	80	100	4	25	910	219	0.18/1400	170
YL-5J	125	125	5	25	950	219	0.18/1400	200
YL-6J	180	150	6	32	965	273	0.18/1400	270
YL-8J	320	200	8	40	1085	325	0.18/1400	350
YL-10J	490	250	10	50	1235	377	0.18/1400	390
YL-12J	710	300	12	50	1260	425	0.37/1400	480
YL-14J	970	350	14	65	1330	478	0.37/1400	550

The above data is for reference only, and the data of each product shipped shall prevail.

Design Features

1. Fully automatic cleaning electric device;

2. The filtration precision can be customized according to requirements;

3. Simple cleaning method: stainless steel brush type;

4. Corrosion resistance: phosphating treatment, the steel body is coated with epoxy resin layer for anti-corrosion, and it can also be made into seawater corrosion-resistant shell or stainless steel body according to requirements;

5. Self-cleaning continuous flow, very little water consumption: no more than 1% of the total flow.
