P-type backflushing sewage filter is suitable for various water supply systems, process water systems and industrial cooling water systems, especially for 24-hour non-stop systems, which can filter out various mechanical impurities in water and ensure the safety and reliability of system equipment. run.

Inquiry

product description

P-type backflushing sewage filter is suitable for various water supply systems, process water systems and industrial cooling water systems, especially 24-hour non-stop systems, which can filter out various mechanical impurities in water and ensure the safety and reliability of system equipment. run.

Structure and working principle
P-type recoil sewage filter is mainly composed of high-quality carbon steel cylinder, stainless steel wedge-shaped filter with special structure, butterfly valve and sewage equipment. When the filter is working, the butterfly valve is in the open state, the water flow enters the filter from the inlet, and is filtered to the outlet through the filter screen. When the filter needs to discharge sewage, close the butterfly valve and open the sewage valve. The water flows through the first half of the filter screen to filter, part of the water flow enters the system from the outlet, and the remaining water flow flows from the outside of the second half of the filter screen to the inside, and is discharged through the sewage outlet. The function of automatically flushing the filter screen. The entire flushing process system works without downtime.

technical parameter

1. Processing effect

※Filter precision: can be selected according to user needs

※Filter efficiency: high

※Pressure loss: ≤0.015Mpa

2. Influent water quality

※Working pressure: ≤1.6Mpa

※Working temperature: 0℃～120℃

※Working environment temperature: -25℃～+50℃

※Relative humidity: ﹤95%

3. Operating parameters

※Mean failure-free working time: ﹥60000 hours

※Design life: 20 years

Others: The working pressure, filtration accuracy and specifications can be specially manufactured according to user requirements, and the flange connection size is according to GB-9119.8-88

Selection parameter table

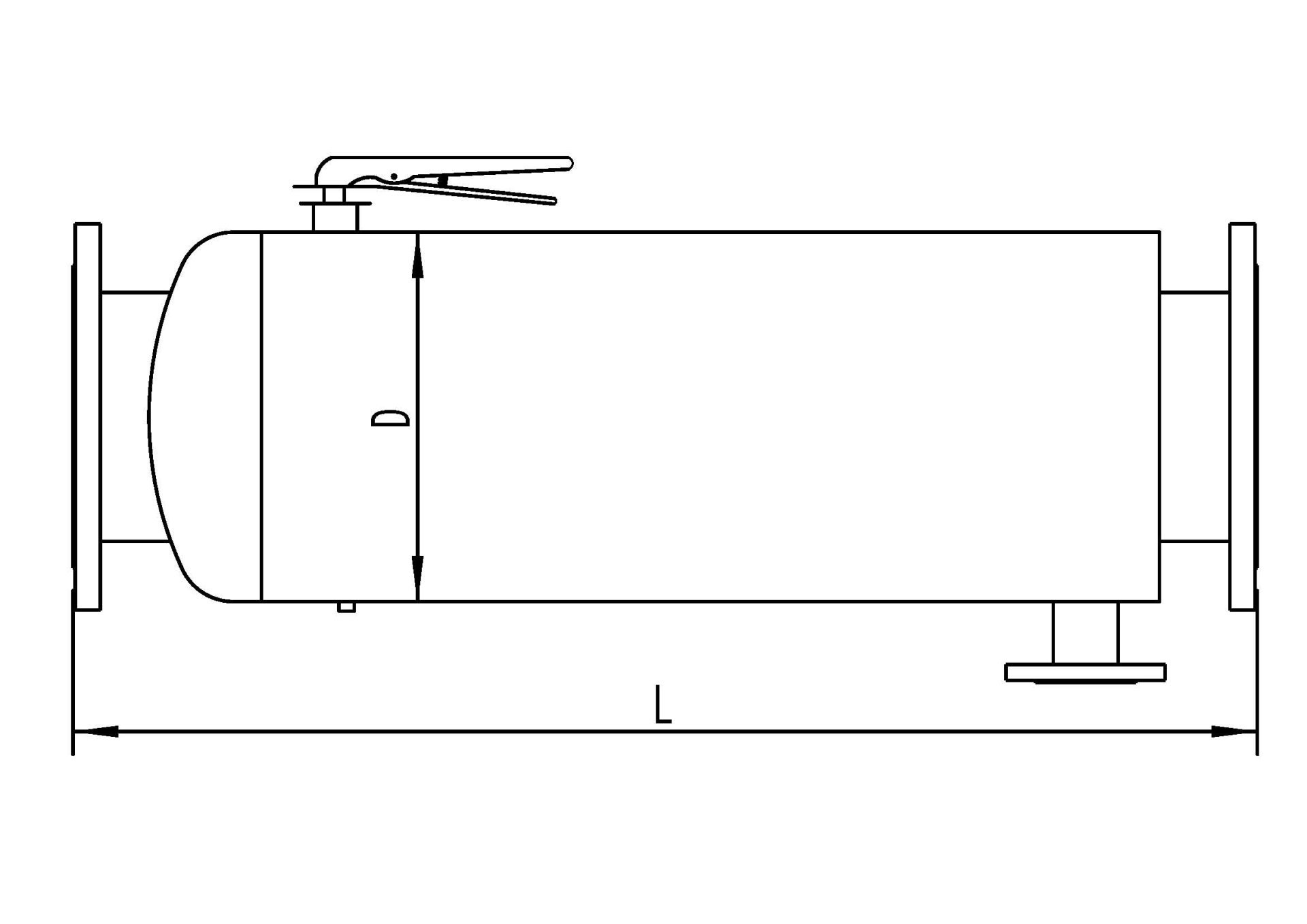

model	flow （T/h）	Exit and entry diameter		Sewage diameter(mm)	D (mm)	L （mm）	weight （Kg）
model	flow （T/h）	mm	in	Sewage diameter(mm)	D (mm)	L （mm）	weight （Kg）
YL-2P	19	50	2	25	159	500	13
YL-2.5P	28	65	2.5	25	159	500	15
YL-3P	50	80	3	25	219	550	18
YL-4P	80	100	4	25	219	600	25
YL-5P	125	125	5	25	219	650	39
YL-6P	180	150	6	32	273	800	55
YL-8P	320	200	8	40	325	900	85
YL-10P	490	250	10	50	377	1000	120
YL-12P	710	300	12	65	426	1100	150
YL-14P	970	350	14	65	478	1200	220
YL-16P	1260	400	16	65	530	1350	280
YL-18P	1590	450	18	80	630	1500	350
YL-20P	1970	500	20	100	720	1700	420
YL-24P	2850	600	24	125	800	1900	580

The above data is for reference only, and the product data of each shipment shall prevail

installation and use
